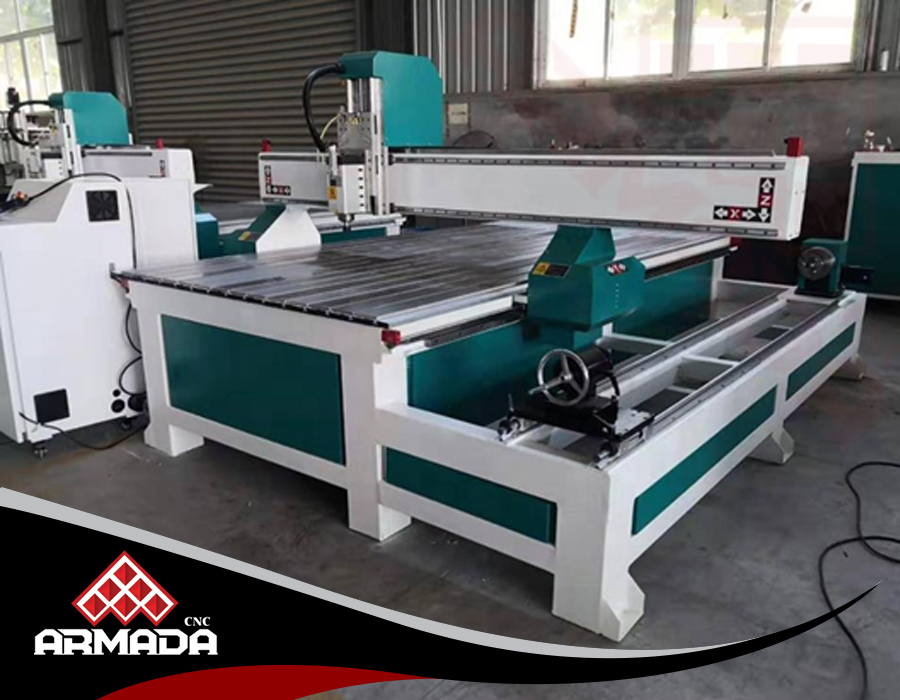

ACR-1325
Technical Parameter of 4 Axis 3D Rotary Axis Cnc Router Wood Cutting Cnc Router Cnc Wood Machinery:
| Parameters | Standard Specifications |
| Machine Model No. | U-R1325R |
| X Y Z axis working area | 1325/1530/2030/2040/2060 |
| 4th rotary diameter | 100-400mm |
| 4th rotary position | At side of machine,at front of table or onto the worktable |
| Spindle | 4.5kw water cooling spindle (others are option) |
| X Y Z traveling positioning accuracy | +-0.01/2000mm |
| Table | combined vacuum table and T slot table |
| Vacuum pump | air cooling 5.5kw pump |
| X Y Z rail and transmission | Taiwan TBI ball screw and gear rack |
| Max.rapid travel rate | 40m/min |
| Max.working speed | 25m/min |
| Spindle speed | 0-24000RPM |
| Driver motors | Stepper (Servo is optional) |
| Working voltage | 220V/380V/50HZ |
| Command language | G code |
| Control system | DSP A18 (Mach3,Ncstudio are optional) four axis system |
| Software compatibility | Artcam,Ucancam,Type3,Powermill,Mastercam,Vcarve |
| Running environment | Temperature:0~45°C
Relative humidity:30%~75% |
| Lubricate system | Included |
| Frame structure | Thick and rigid seamless steel tube welding structure |
