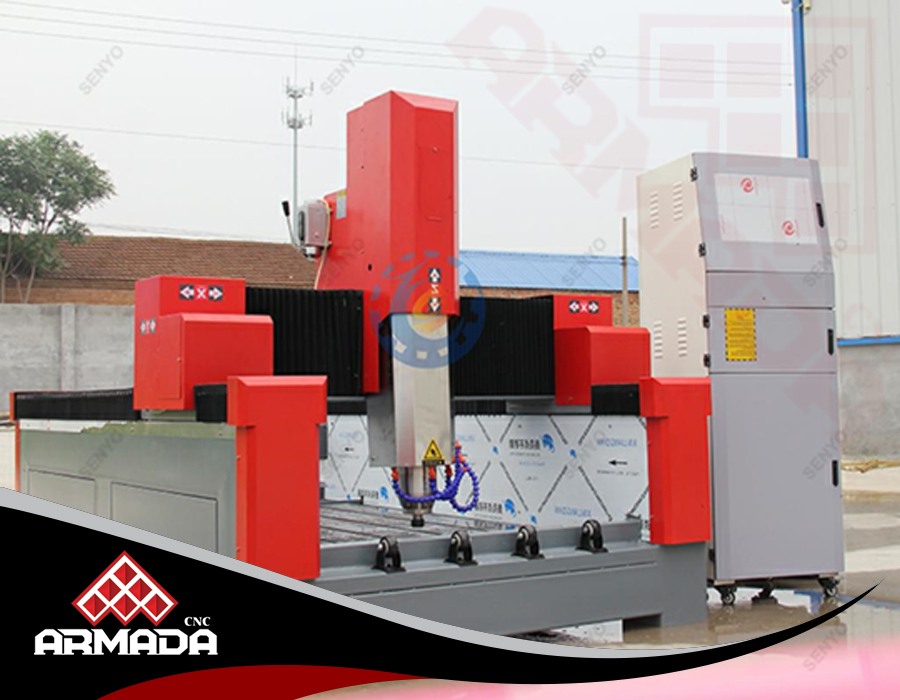

ACSEC-1325
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1325/1530/2030/2040/2060 |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Vacuum&T-slot Table |
| 6 | Frame | Welded Structure,heavy duty T-structure |
| 7 | X, Y Structure | Helical Rack gear,
Taiwan Hiwin/PMI Rail Linear Bearings |
| 8 | Z Structure | Taiwan TBI Ball Screw
Taiwan Hiwin/PMI Rail Linear Bearings |
| 9 | Max. Power Consumption | 2.0KW |
| 10 | Max. Rapid Travel Rate | 45000mm/min |
| 11 | Max. Working Speed | 30000mm/min |
| 12 | Spindle Power | 5.5KW water cooling |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | FL118 (optional) |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| 16 | Command Language | G Code |
| 17 | Operating System | Ncstudio /Mach3 |
| 18 | Computer Interface | USB |
| 19 | Flash Memory | 128M(U Disk) |
| 20 | Collet | ER25 |
| 21 | X,Y Resolution | <0.01mm |
| 22 | Software Compatibility | Type3 Software, (Option: Artcam Software) |
| 23 | Running Environment Temperature | 0 – 45 Centigrade |
| 24 | Relative Humidity | 30% – 75% |
