| Model |

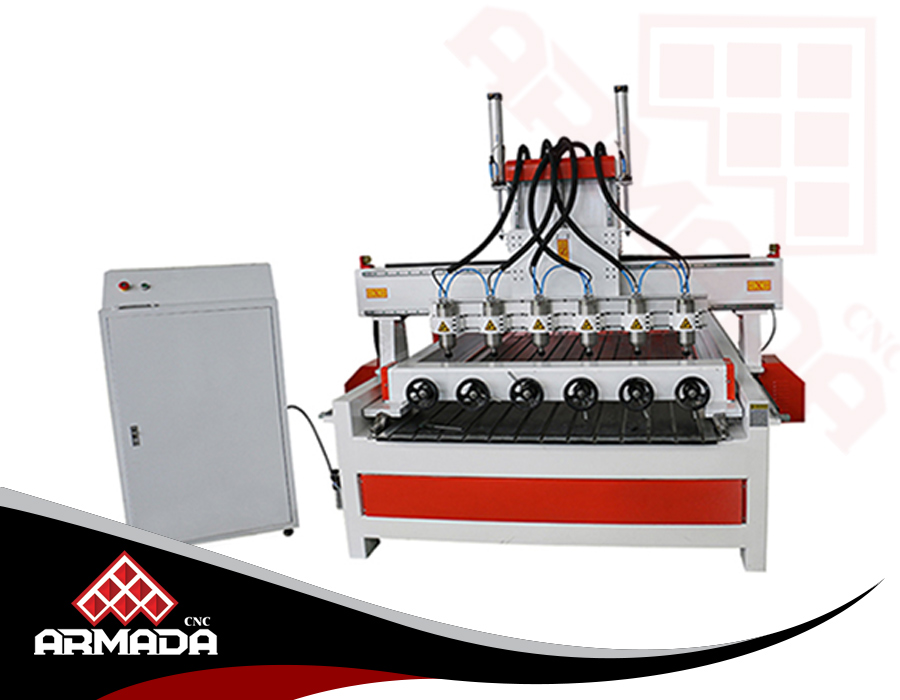

6 Spindle Multi Head 4 Axis Cnc Machine |
| X Y Z Traveling Area |
1300×2500*200mm |
| Table Structure |
alluminum table |
| X Y Transmisson |
rack and pinion |
| Z Transmission |
Germany Ball Screws |
| X Y Z guide rail |
TAIWAN HIWIN Square Rail/ Taiwan PMI |
| Spindle power |
6*2.2kw water Cooling Spindle |
| Max Spindle speed |
24000r/ min |
| rotary device |
6 sets of rotary device |
| Max Traveling speed |
45m/s |
| Max Working speed |
38m/s |
| Processiong Accuracy |
±0.02mm |
| Reposition Accuracy |
±0.02mm |
| Working Voltage |
380V /50Hz |
| Dust collector |
Yes |
| Operation system |
NC studio/DSP/Mach3 |
| Processor |
Windows /100MHz |
| Interface |
PCI |
| Command |
G*.u00*.mmg*.plt |
| Power(not include the spindle) |
500W |
