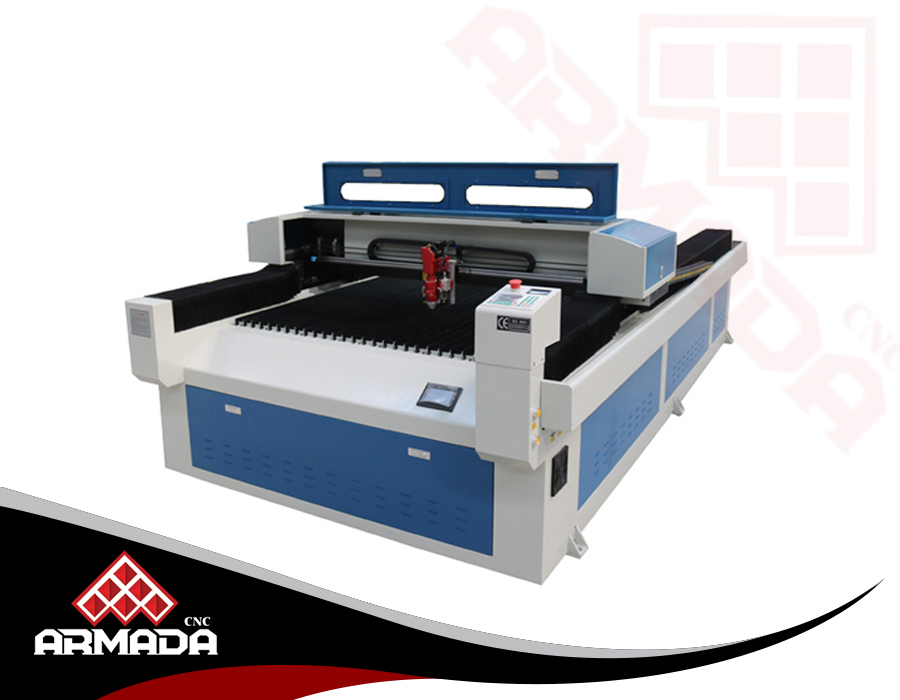

ACO2LLM-1325
| Cutting thickness of different laser power | ||||
| Material
Laser power |
Stainless steel | Carbon steel | MDF | Acrylic |
| 130W | 0.8mm | 1.5mm | 13mm | 20mm |
| 150W | 1.8mm | 2.5mm | 20mm | 25mm |
| 280W | 2mm | 3mm | 30mm | 30mm |
Parameters
| Laser tube power | RECI W6 (optional: RECI W8 /Yongli 280W / Yongli 300W) |
| Laser Type | CO2 sealed laser tube |
| Engraving Speed | 0-64000mm/min |
| Cutting Speed | 0-36000mm/min |
| Resetting positioning accuracy | ≤±0.01mm |
| Laser Output | 1-100% software setting |
| Cooling mode | Circulating-water-cooling and protection system |
| Machine control and drive | Ruida 6332M, stepper motor |
| Cutting Platform | knife-strip platform |
| Min. shaping character | Character2.0mm×2.0mm,English1.0mm×1.0mm |
| Power Supply | AC220V 50HZ /60HZ |
| Dictate format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las etc. |
| Operating Humidity | 5-95%(Free of Condensed Water) |
| Compatible Software | CorelDraw ,AutoCAD transmit directly |
| Optional Spare Parts | Rotary system, Infrared Locating System, Laser Tube, Up-down clump |
| Recommended Spare Parts | Laser Tube / Mirrors and lens |
