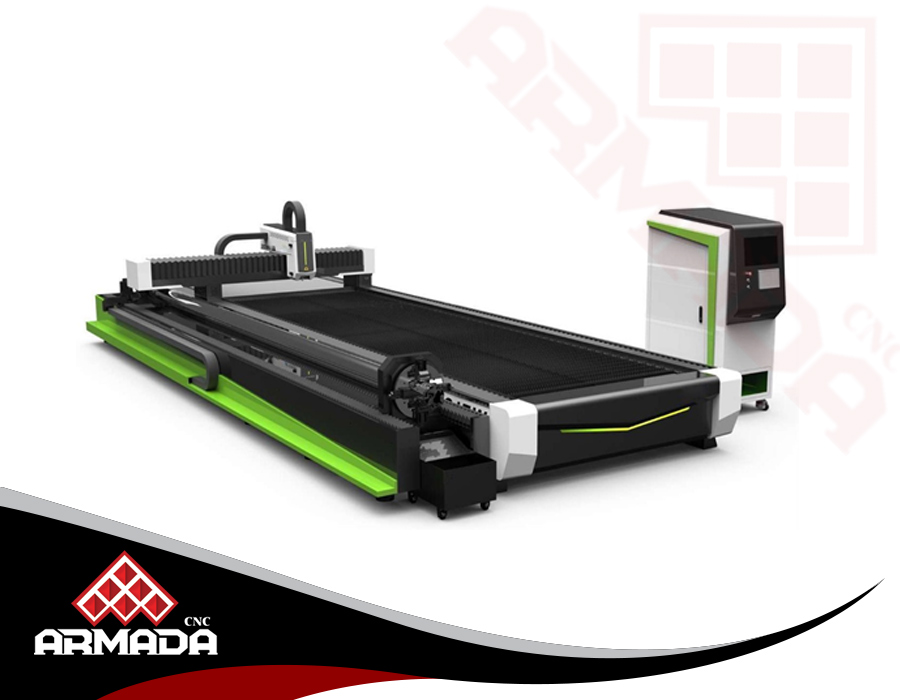

AFMR-1530
| Model | 3015/ 4020/6020/6015/2513 |
| Working area | 3000*1500mm |
| Miximum length of pipe(Options) | 3000mm(or)6000mm |
|
Limits of pipe(Customized) |
Round tube:Φ20mm~Φ120mm;
Square tube :Φ20mm~80mm; Circular tube: Φ20mm~Φ120mm;Square tube: Φ20mm~80mm |
| Laser type | Fiber laser generator |
| Laser power(optional) | 500~2000W |
| Transmission system | Double serve motor &gantry&rack&pinion |
| Maximum speed | ±0.03mm/1000mm |
| Pipe cutting system(optional) | yes |
| Maximum speed | 60m/min |
| Maximum accelerated speed | 0.6G |
| Position accuracy | ±0.15mm/1000mm |
| Reposition accuracy | ±0.02mm/1000mm |
| Graphic format supported | CAD,DXF(etc) |
| Total power | 10KW |
| Power supply | 380V/50Hz/60Hz |
| Overall dimension(include cutting machine in 3 meters long) | 4350mm×3200mm×1740mm |
| Overall dimension(include cutting machine in 6 meters long) | 7650mm×3200mm×1740mm |
| Gross weight | 6000kg |
