| Model |

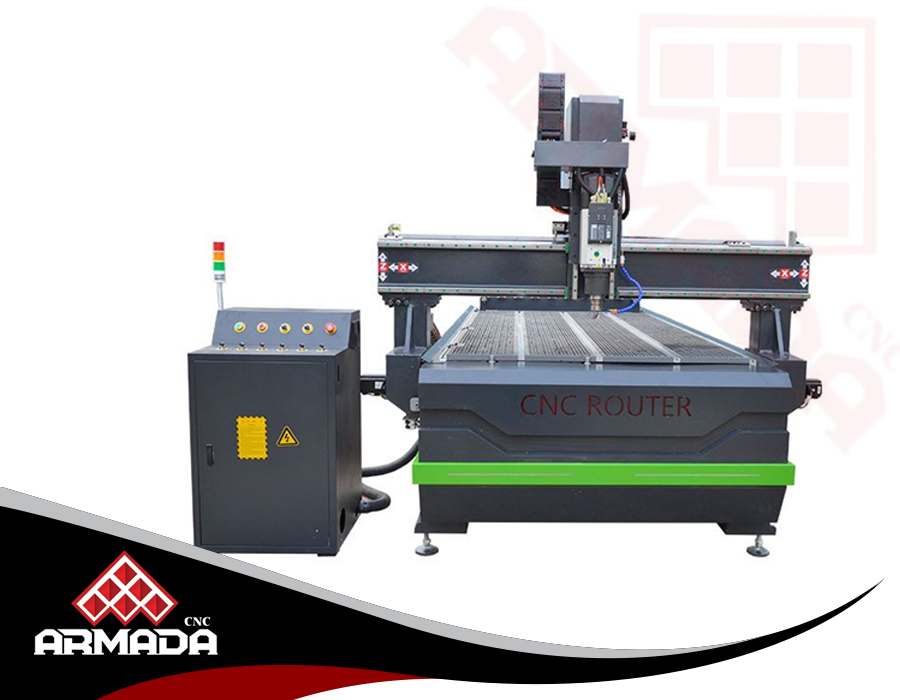

ACT-ATC |
| X-Y-Z axis working area |
1325/1530/2040/2060x 200mm |
| Machine size |
2,100 x 3,800x2300mm |
| Repositioning resolution |
0.02mm |
| X-Y movement |
rack and pinion, gear drive |
| Z movement |
ball screw drive/Taiwan |
| Guide |
Linear 25 square/Taiwan |
| Max. speed |
45,000mm/min |
| Max. cutting speed |
35,000mm/min |
| Spindle power |
9/12KW HSD/HQD air cooling |
| Auto tool changer |
carousel type with tool shank |
| Spindle speed |
24,000rpm |
| Inverter power |
11kw |
| Drive motors |
Delta1000W/YASKAWA servo motor 850W |
| Working voltage |
AC380V/50-60Hz, 3-phase |
| Command code |
G code |
| Computer interface |
USB 2.0 |
| Table |
vacuum table with pump |
| software free |
Alphacam |
| controller |
LNC/Syntec 6MB |
| pop up pins |
x-axis 2 pcs y-axis 3 pcs |
