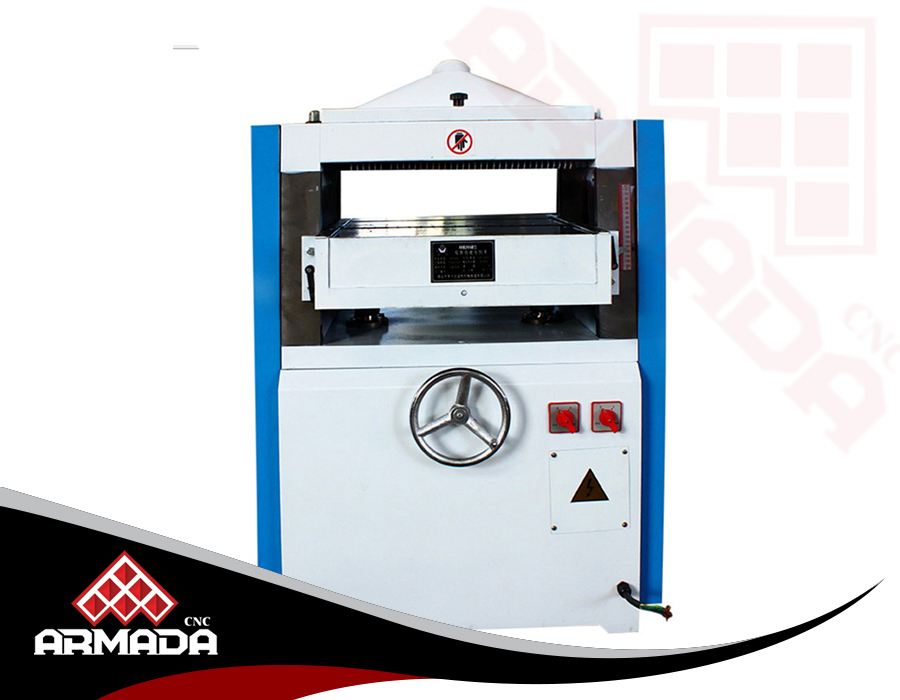

MB204
| name | planer thickness |
| model no | MB204 |
| max working width | 400mm |
| working thickness | 3-160mm |
| min working length | ≥165mm |
| up-knife max working amount | ≤4mm |
| lower-knife max working amount | ≤2mm |
| depth of bottom knife cutting | 0-2mm |
| automatic feeding speed | 8-10m/mim |
| spindle speed | 7000-7500rpm |
| spindle cutting diameter | 75mm |
| up spindle motor | 2.2kw/380v |
| lower spindle motor | 1.5kw/380v |
| net weight | 295kg |
| overall dimensions | 890*495*1180mm |
