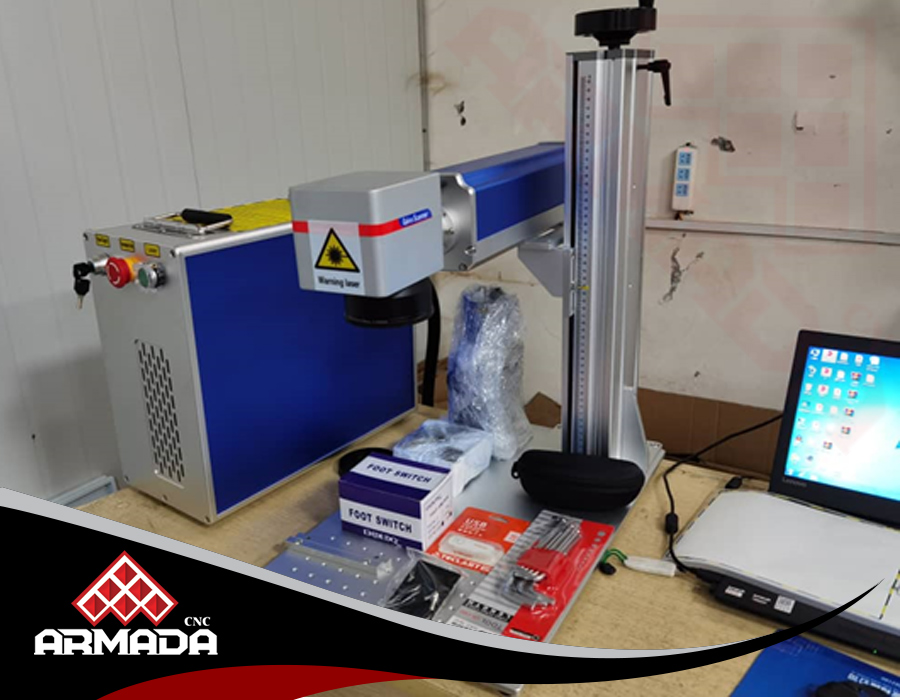

Fiber laser marking machine technical parameters
| Fiber laser marking machine technical parameters | |
| Laser Type | Fiber laser |
| Laser Power | 20W 30W 50W 100W |
| Model | LXF-20W LXF-30W LXF-50W LXF-100W |
| Laser Wavelength | 1064nm |
| Marking Area | 75*75mm 110*110mm 150mm*150mm
175mm*175mm 200*200mm 300*300mm |
| Marking Depth | ≤1.2mm |
| Marking Speed | 10000mm/s |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.15mm |
| Repeated Precision | ±0.003mm |
| Life-span of Fiber Laser Module | 100 000hours |
| Beam Quality | M2 <1.5 |
| Focus Spot Diameter | <0.01mm |
| Output Power of Laser | 10%~100% continuously to be adjusted |
| System Operation Environment | Windows XP / W7–32/64bits / W8–32/64bits |
| Cooling Mode | Air cooling–Built-in |
| Temperature of Operation Environment | 15℃~35℃ |
| Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
| Power Requirement | <400W |
| Communication Interface | USB |
| Machine Dimension/after package | 920*830*1160mm |
| Net Weight/gross weight | 120/170kg |
| Optional |
Rotary Device, Moving Table, other customized Automation |
