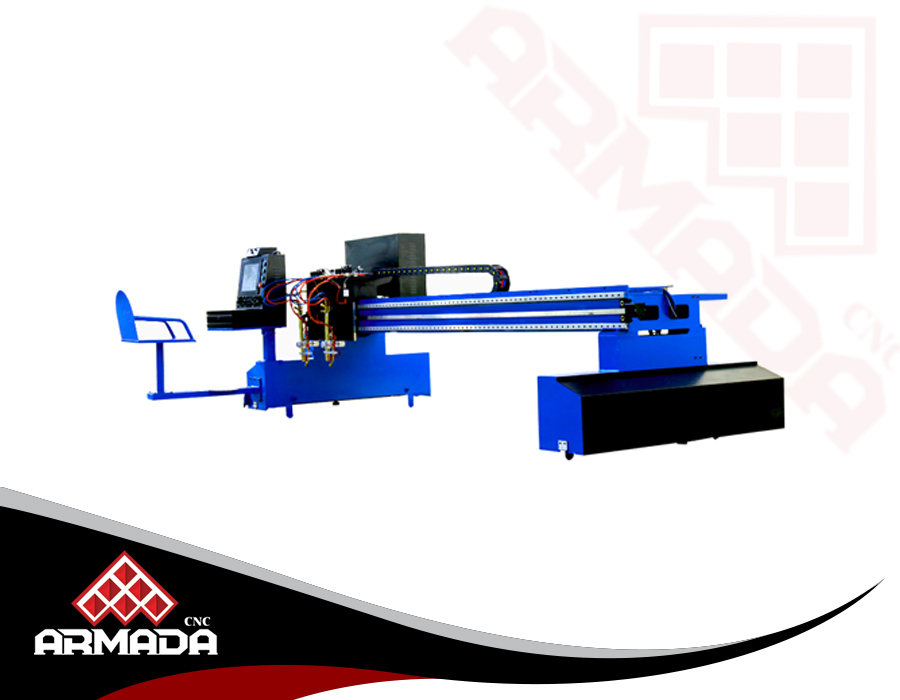

ACPG-1530
| No. | Description | LXP1530
(Optional:LXP1015/LXP1212/LXP1325/LXP1540/LXP1550/LXP1560/LXP2030 /LXP2040/LXP2050/LXP2060,other size can be customized) |
| 1 | Working Size | 1500*3000mm
(Optional:1000*1500/1200*1200/1300*2500/1500*4000/1500*5000/1500*6000 /2000*3000/2000*4000/1500*5000/1500*6000/2000*5000/2000*6000mm,other size can be customized) |
| 2 | Z Axis Clearance | 150mm(200 And Higher Is Optional) |
| 3 | Table Type | Knife table (Teeth table And Water table can be optional) |
| 4 | Transmission System | Rack Pinion And Hiwin Linear Rails For X/Y |
| 5 | Driving System | Stepper Motor And Drivers(Servp motor is optional) |
| 6 | Max. Cutting Speed | 12000mm/Min(different configuration and different material and thickness speed is different) |
| 7 | Max. Travelling Speed | 30000mm/Min(different configuration speed is different) |
| 8 | Working Voltage | 380V/3ph(220V/3ph is optional) |
| 9 | Plasma Generator | Huayuan China and USA power as your requirements |
| 10 | Arc Mode | Non-Contact Arc, Arc Pressure Adjuster |
| 11 | Output Current | 63/100/120A/160A/200A China(45/65/85/105/125/200A USA) |
| 12 | Max. Cutting Thickness | 6/15/18/20/30mm |
| 13 | Operating System | Starfire Controller/Start Controller/JiaoDa fangling controller |
| 14 | Working Material | Steel, Aluminum, Galvanized Sheet, Titanium Plate, Platinum Plate and almost all of the metal |
