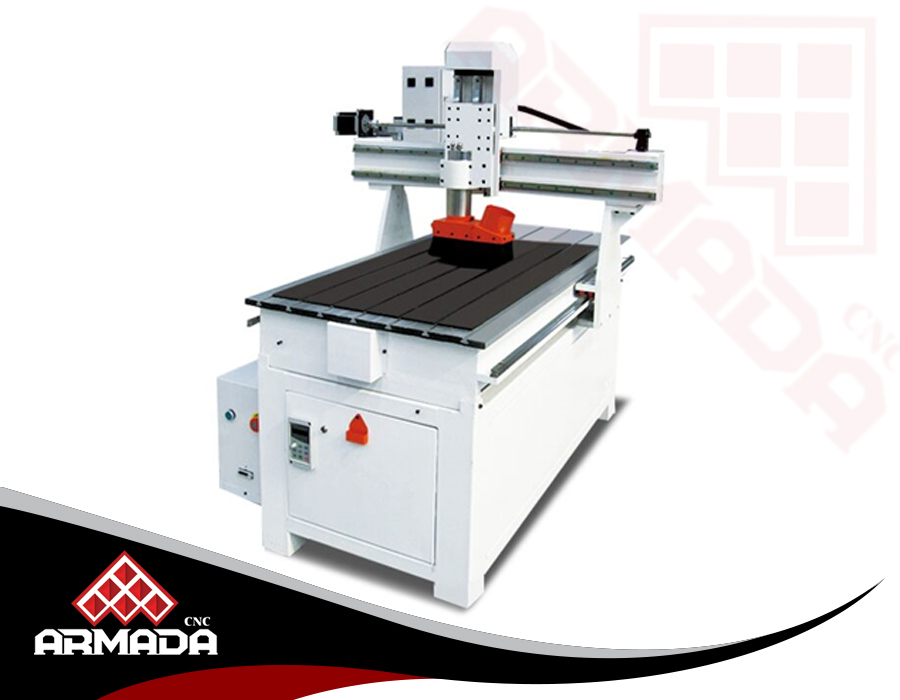

ACM-6090
| SPECIFICATIONS FOR CNC ROUTER MACHINE | ||||
| Model name | K6100A cnc cutting machine | 1 Set | ||
|
Working area |
X travel | 600 mm | ||
| Y travel | 1000 mm | |||
| Z travel | 200 mm | |||
| X-Y-Z movement | Ball screw | |||
| Guide | Linear ￠20 square/Taiwan | |||
| Max. speed | 10m/min | |||
| Max. cutting speed | 5m/min | |||
| Spindle power | 2.2kw water cooling | 1 PCS | ||
| Spindle speed | 6,000 – 24,000 RPM | |||
| Inverter power | 2.2kw Inovance | |||
| Working voltage | AC220V/50-60Hz,1-phase | |||
| Table | Aluminum T-slot table | 1 PCS | ||
| Motor | Stepper motor | 3 PCS | ||
| Control system | DSP A11 | 1 PCS | ||
| Software | Artcam,Alphacam copy | |||
| Dust system | Dust hood for spindle | 1 PCS | ||
|
Optional |
1. Automatic tool change model (3-5 pcs)
2. 4th axis
3. Vacuum function |
|||
